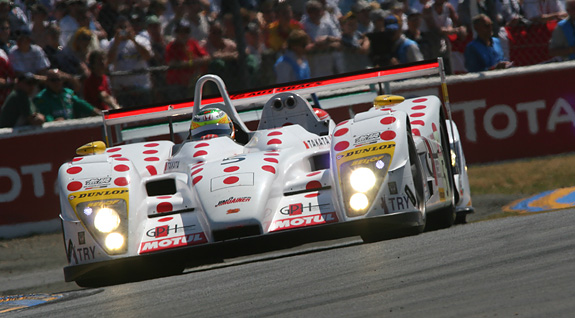

DOME S101hb 2005
解説
SPECIFICATION
- Length: 4,485mm
- Width: 1,995mm
- Height: 1,085mm
- Wheelbase: 2,850mm
- Fr/Rr Track: 1,640mm/1,600mm
- Weigh: 900kg

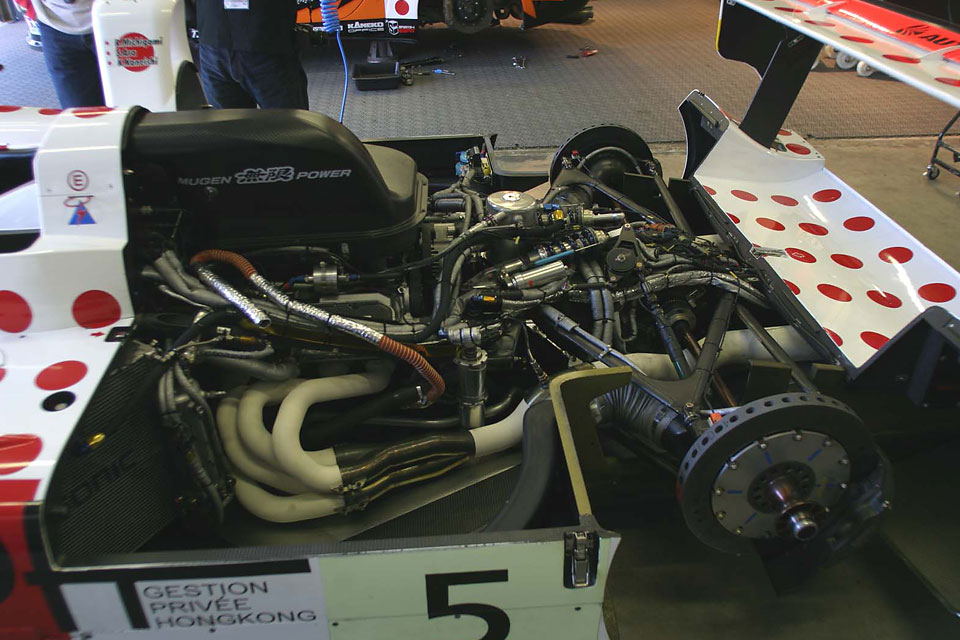

- Engine: MUGEN MF408S
- Suspension: Double wishbone, pushrod operated twin coil damper + coil spring
- Gearbox: XTRAC "279" SQ-6speed
- Clutch: AP 5.5" C/C 4PLATE
- Fuel System: Premier FT-3, approximaterly 45 Liter capacity
- Dampers: SHOWA
- Brake: AP+CARBON INDUSTRY
- Restrictor: Twin φ33.4 x 2
- Axle: DOME+PANKL
- Steering: DOME + Kayaba EPS
- Cooling: DOME+CALSONIC
- Battery: RED TOP 60
- Wheels: RAYS
- Monocoque: Full Carbon Composites + Aluminium Honey Comb
- Fire Extinguisher FEV: Light weight and compact
- Seat Belt: TAKATA Light weight 6-point
- Head Light: Bellof Head light HID
- Data Log.System: Pi SIGMA + Telemetory system
戦績

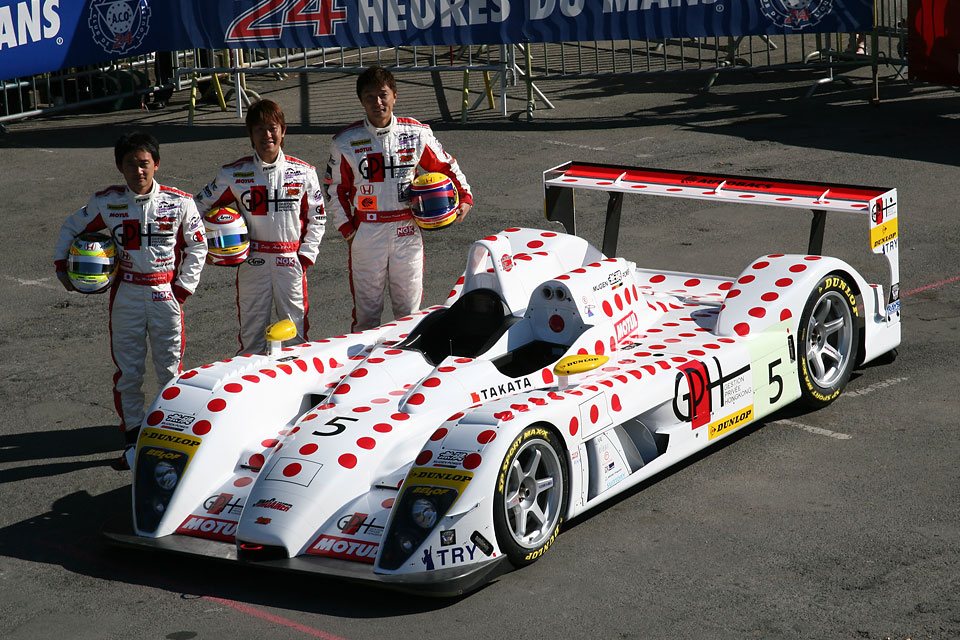

- Car No.5Driver: R.Michigami/S.Ara/K.KaneishiQualify: 4Race: 7
- Car No.10Driver: J.Lammers/E.Julian/J.BoschQualify: 11Race: R
